Introduction to Alvis

Aims of this seminar

Overview

Alvis

Technical specifications

  • NAISS resource dedicated to AI/ML research funded by KAW
  • Consists of nodes accelerated with multiple GPUs
  • For node details, see about Alvis

Eligibilitiy

  • Swedish academic researcher as PI
    • NAISS Small Compute: PI ≥ PhD-student
    • NAISS Medium/Large Compute: PI ≥ Assistant Professor
  • Workloads using GPUs
  • Guide for getting access
  • NAISS plans to discontinue Alvis 2026-06-30

GPU hardware details

#GPUs GPUs Capability CPU Note
44 V100 7.0 Skylake
160 T4 7.5 Skylake
332 A40 8.6 Icelake No IB
296 A100 8.0 Icelake Fast Mimer
32 A100fat 8.0 Icelake Fast Mimer

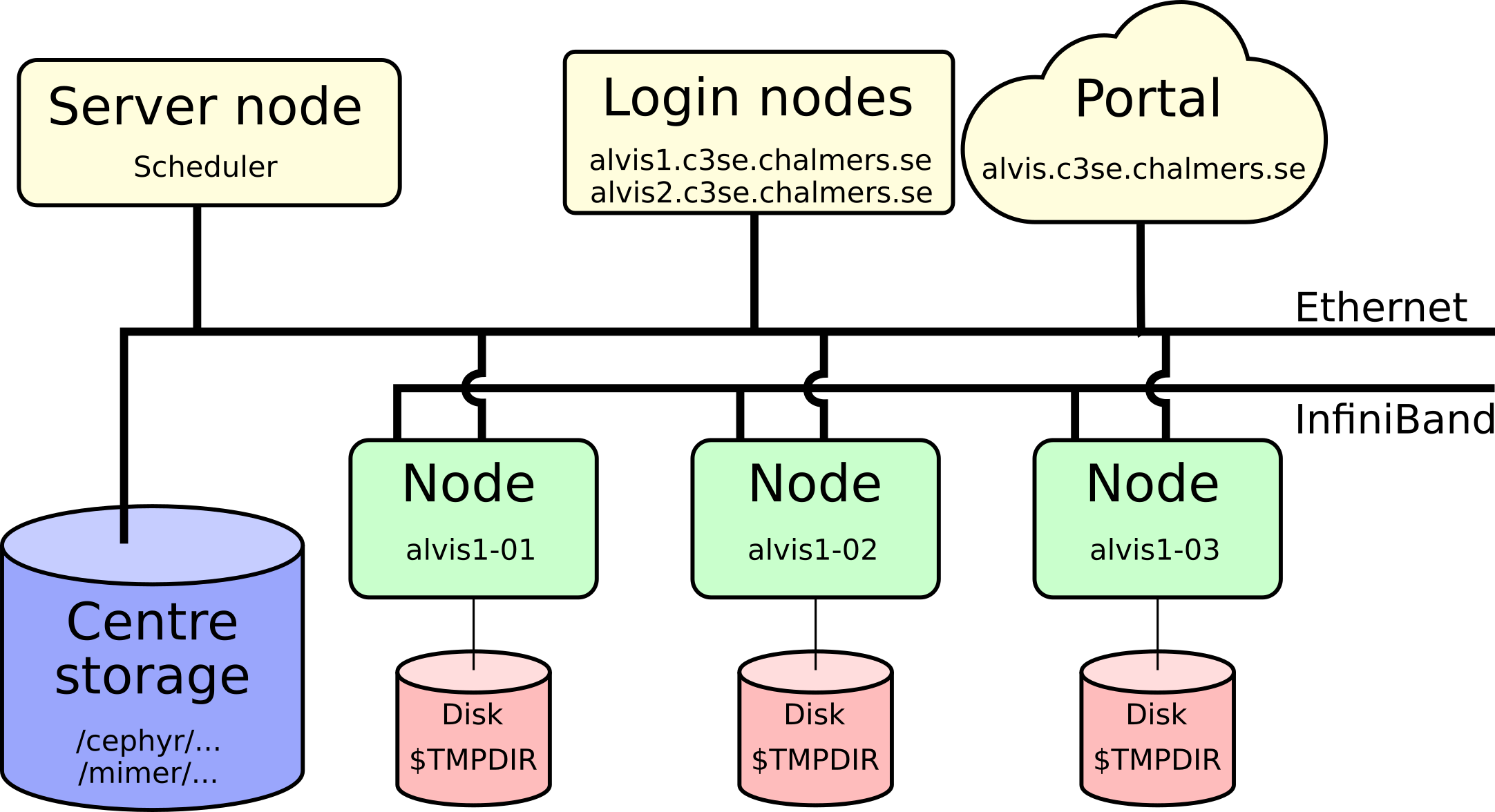

Cluster sketch

The cluster environment

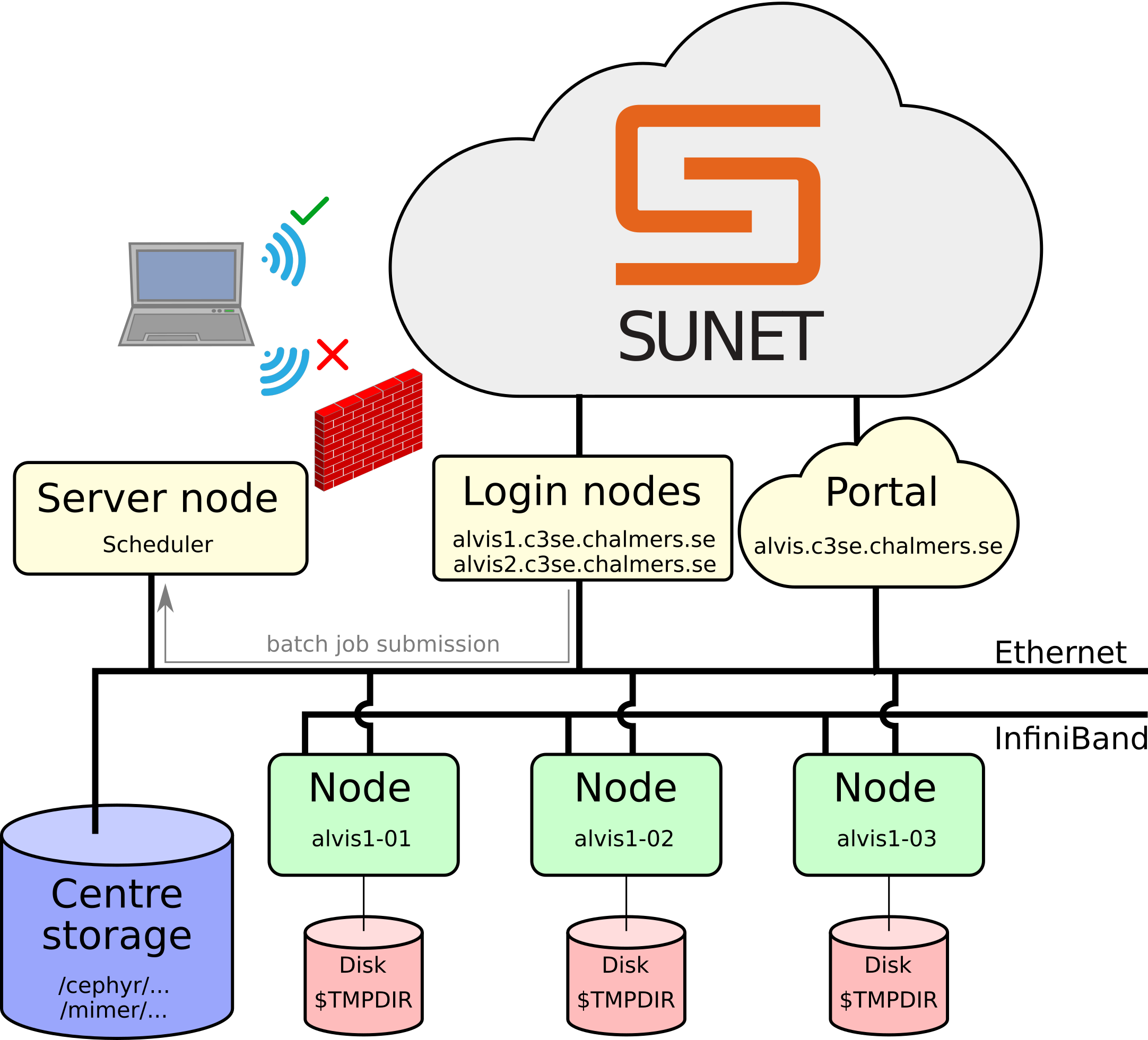

Connecting

Cluster firewall only allows connection from within SUNET

Firewall and VPN

  • Firewall limits connections to within SUNET
  • Use a VPN if needed

Log-in nodes

  • alvis1.c3se.chalmers.se has 4 T4 GPUs for light testing and debugging
  • alvis2.c3se.chalmers.se is dedicated data transfer node
  • Will be restarted from time to time
  • Login nodes are shared resources for all users:
    • don't run jobs here,
    • don't use up too much memory,
    • preparing jobs and
    • light testing/debugging is fine

SSH - Secure Shell

  • ssh <CID>@alvis1.c3se.chalmers.se, ssh <CID>@alvis2.c3se.chalmers.se
  • Gives command line access to do anything you could possibly need
  • If used frequently you can set-up a password protected SSH-key for convenience

Alvis Open OnDemand portal

  • https://alvis.c3se.chalmers.se
  • Browse files and see disk and file quota
  • Launch interactive apps on compute nodes
    • Desktop
    • Jupyter notebooks
    • MATLAB proxy
    • RStudio
    • VSCode
  • Launch apps on log-in nodes
    • TensorBoard
    • Desktop
  • See our documentation for more

Remote desktop

  • RDP-based remote desktop solution on shared login nodes (use portal for heavier interactive jobs)
  • In-house-developed web client:
  • Can also be accessed via desktop clients such as Windows Remote Desktop Connection (Windows), FreeRDP/Remmina/krdc (Linux) and Windows App (Mac) at and (standard port 3389).
  • Desktop clients tend to offer better quality and more ergonomic experiences.
  • See the documentation for more details

Files and Storage

The cluster environment

  • Cephyr /cephyr/, and Mimer /mimer/ are parallel filesytems, accessible from all nodes.

Parallel filesystems

  • Accessible from all servers
  • Backed up home directory at /cephyr/users/<CID>/Alvis (alt. use ~)
  • Project storage at /mimer/NOBACKUP/groups/<storage-name>
  • The C3SE_quota shows you all your centre storage areas, usage and quotas.
    • On Cephyr see file usage with where-are-my-files
  • File-IO is usually the limiting factor on parallel filesystems
  • If you can deal with a few large files instead of many small, that is preferable

Transfering files

  • See filesystem page for documentation, with examples on how to share files.
  • Transfer via alvis2 (dedicated data transfer node)
  • Same connection requirements as usual
  • Command line tools like scp, rsync, rclone
  • Graphical tools like CyberDuck and WinSCP
  • Run transfer tools on your local machine
# Transfering <your-file> from your computer to your storage project
scp <your-file> <CID>@alvis2.c3se.chalmers.se:/mimer/NOBACKUP/<storage-name>/

# Transfering <your-file> to <path-to-dir> on your computer
scp <CID>@alvis2.c3se.chalmers.se:/mimer/NOBACKUP/<storage-name>/<your-file> <path-to-dir>

Editing files and traversing the filesystem

  • Learn the common tools: cd, pwd, ls, cp, mv, rsync, rmdir, mkdir, rm
  • Learn to use a command line editor: nano, vim, emacs, ...

Data policies

Datasets

  • We allowed, we provide popular datasets at /mimer/NOBACKUP/Datasets/
  • In all cases, only allowed use is for non-commercial, research applications
  • Note that original provider may require you to cite some literature if you use if you use the dataset in your research
  • It is your responsibility to make sure your use is compliant
  • In some cases, a README file with information is found by the dataset
  • A list of the currently available datasets and supplementary information can be found under datasets
  • For details on transferring datasets to and from Alvis see, bulk data transfer page.

Software

  • Our systems currently run Rocky Linux 8, which is an open-source version of Red Hat Enterprise Linux
    • It's not Ubuntu!
    • Users do NOT have sudo rights!
    • You can't install software using apt-get!
    • The system installation is intentionally sparse; you access software via modules and containers.

Containers

  • It is possible to run containers via Apptainer
    • Apptainer is a fork off of Singularity
  • No, it will not be possible to run docker, but you can easily convert docker containers to apptainer containers
  • We provide some containers under /apps/containers
  • Instructions on how to use build and use containers
  • You can build your container on the log-in nodes with apptainer build my_container.sif my_recipe.def

Modules

  • A lot of software available in modules.
  • Commercial software and libraries; MATLAB, CUDA, Nsight Compute and much more.
  • Tools, compilers, MPI, math libraries, etc.
  • Major version update of all software versions is done twice yearly
    • 2022b: GCC 12.2.0, OpenMPI 4.1.4, CUDA 12.0.0, Python 3.10.8, ...
    • 2023a: GCC 12.3.0, OpenMPI 4.1.5, CUDA 12.1.1, Python 3.11.3, ...
    • 2023b: GCC 13.2.0, OpenMPI 4.1.6, CUDA 12.4.0, Python 3.11.5, ...
  • Mixing toolchains versions will not work
  • Popular top level applications such as TensorFlow and PyTorch may be updated within a single toolchain version.

Toolchains

  • Tip: You can test things out on the login node. Try loading and purging modules; changes are temporary.
  • Putting load commands directly in your ~/.bashrc will likely break some system utilities for you.
  • module load Foo/1.2.3 or ml Foo/1.2.3 for loading
  • module list or ml to list all currently loaded modules
  • module spider Bar or ml spider Bar for searching
  • module keyword Bar or ml keyword Bar for searching keywords (e.g. extensions in python bundles)
  • module purge or ml purge for unloading all modules
  • Modules provide development information as well, so can be used as dependencies for builds.
  • Flat module system.

Software installation

  • We build a lot of modules and containers for general use upon request.
  • We provide pip, apptainer, conda, and virtualenv so you can install your own Python packages locally.
    • See Python information on our homepage for examples.
    • Do not use pip install --user, this is likely to make a mess when used with any other approach and fill up your home directory quota quickly.
    • Be aware of your quota! Consider making a container if you need environments.
  • You can use modules for linking to software you build yourself.
  • Trying to mix conda, virtualenv, containers, and modules does not work well in general. Only exceptions are:
    • Virtualenv on top of modules, OK
    • Conda base environment inside miniforge containers, OK

Installing binary (pre-compiled) software

  • Occasional issue is that software requires a newer glibc version. This is tied to the OS and can't be upgraded.
    • You can use an Apptainer container to wrap this for your software.
  • Make sure to use binaries that are compiled optimised for the hardware.
    • Alvis CPUs support up to AVX512.
    • Difference can be huge. Example: Compared to our optimised NumPy builds, a generic x86 version from pip up to ~9x slower on Vera.
  • CPU: AVX512 > AVX2 > AVX > SSE > Generic instructions.
  • GPU: Make sure you use the right CUDA compute capabilities for the GPU you choose.

Using GPUs

  • Main workload should be on GPUs.
  • Using existing frameworks (PyTorch, TensorFlow, JAX, ...) is usually best
  • Replace heavy NumPy/SciPy workloads with CuPY, see documentation
  • Monitor jobs running new code to see that GPUs are used (job_stats.py, nvidia-smi, ...)
  • Consider what floating-point types you are using:
    • lower precision is faster (but too low may impact results)
    • float64 is very slow and typically not for machine learning
    • float32 to TensorFloat32 or float16/bfloat16 can give substantial speed-up
    • see some examples for matrix multiplication here
  • Jobs allocating GPUs but barely using them may be terminated
    • for light work-loads, T4 is our smallest GPU

Running jobs on Alvis

  • Alvis is dedicated to AI/ML research which typically involves GPU-hungry computations; therefore, your job must allocate at least one GPU
  • You only allocate GPUs (cores and memory is assigned automatically)
  • Hyperthreading is disabled on Alvis
  • Alvis comes in three phases (I, II, and III), and there is a variety in terms of:
    • number of cores
    • number and type of GPUs
    • memory per node
    • CPU architecture

SLURM

  • Alvis runs the SLURM workload manager, a batch queuing software
  • Allocations and usage is defined on a (NAISS) project level.
  • Fairshare system; you can go over your monthly allocation but your past 30 days ("monthly") rolling average affects your queue priority.
  • For more details see Running jobs.

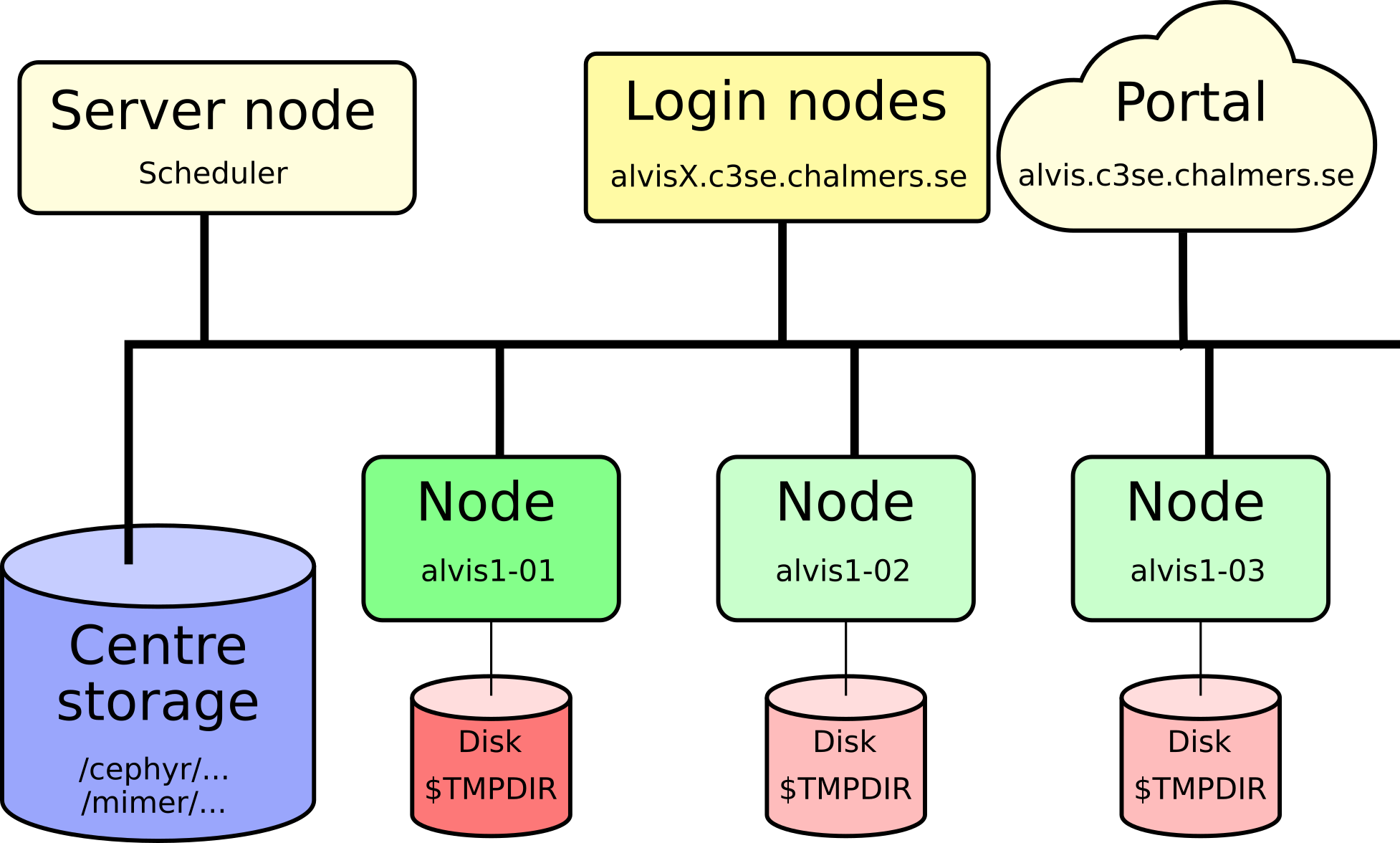

Working on the log-in node

Working on the log-in node

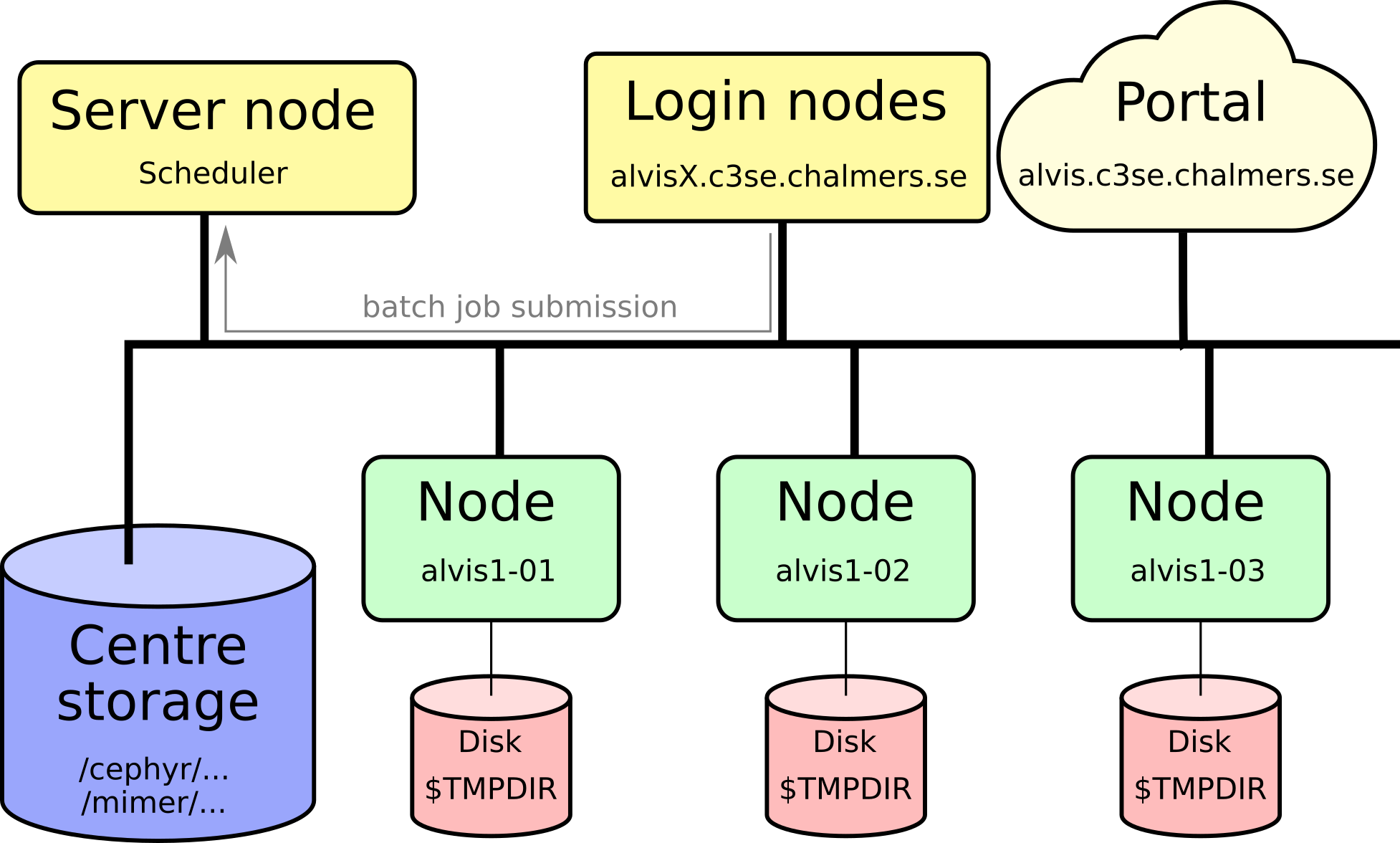

Submitting a job

Submitting a job to the queue

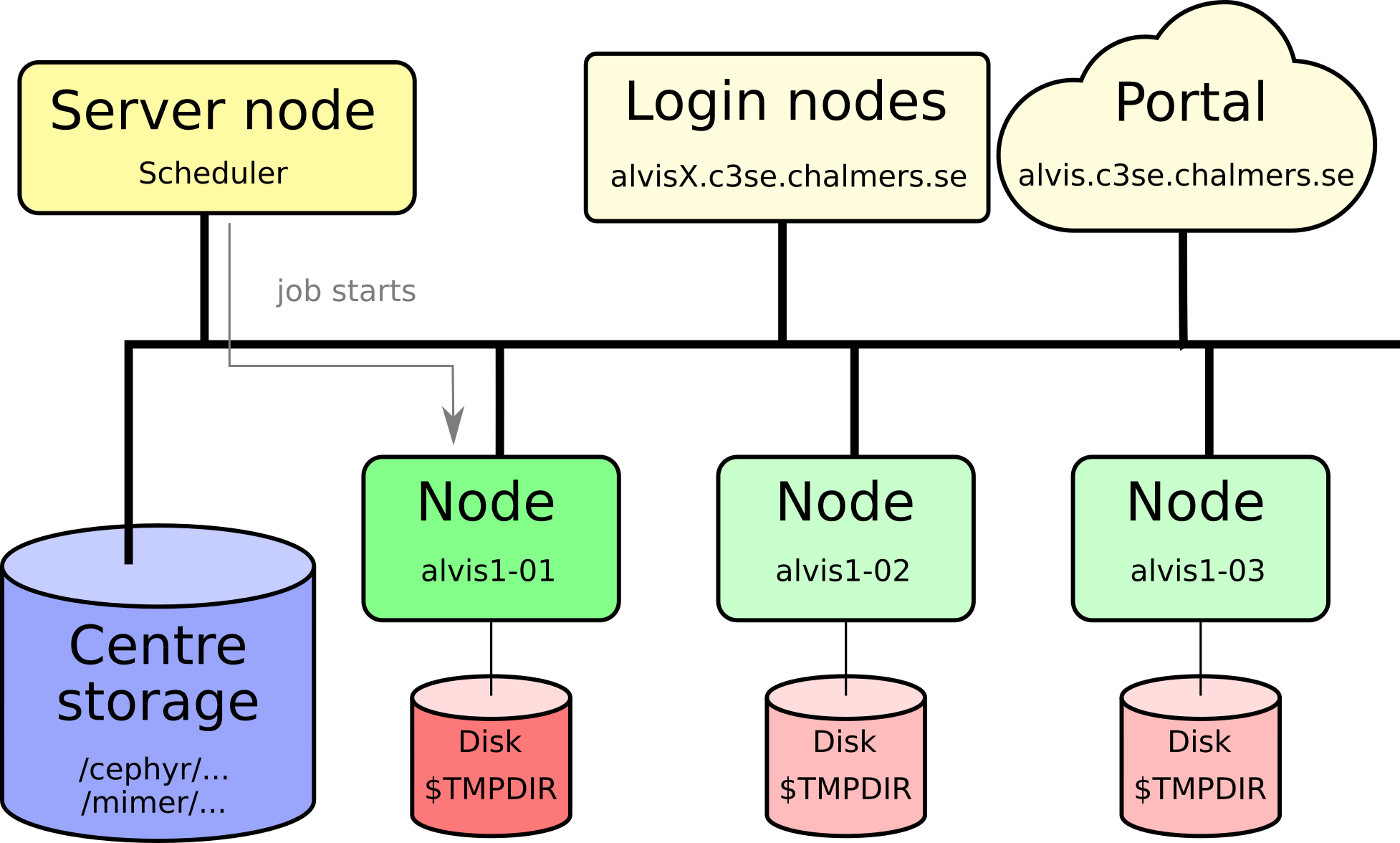

Job starts

Job starts on compute node

Job command overview

  • sbatch: submit batch jobs
  • srun: submit interactive jobs
  • jobinfo (squeue): view the job-queue and the state of jobs in queue, shows amount of idling resources
  • scontrol show job <jobid>: show details about job, including reasons why it's pending
  • sprio: show all your pending jobs and their priority
  • scancel: cancel a running or pending job
  • sinfo: show status for the partitions (queues): how many nodes are free, how many are down, busy, etc.
  • sacct: show scheduling information about past jobs
  • projinfo: show the projects you belong to, including monthly allocation and usage
  • For details, refer to the -h flag, man pages, or Google!

Allocating GPUs on Alvis

  • Specify the type of GPUs you want and the number of them per node, e.g:
    • #SBATCH --gpus-per-node=V100:2
    • #SBATCH --gpus-per-node=T4:3
    • #SBATCH --gpus-per-node=A100:1
  • If you need more memory, use the constraint flag -C to pick the nodes with more RAM:
    • #SBATCH --gpus-per-node=V100:2 -C 2xV100 (only 2 V100 on these nodes, thus twice the RAM per gpu)
    • #SBATCH --gpus-per-node=T4:1 -C MEM1536
  • Jobs not using allocated GPUs may be terminated, to get no GPUs
    • #SBATCH -C NOGPU
  • Many more expert options:
    • #SBATCH --gpus-per-node=T4:8 -N 2 --cpus-per-task=32
    • #SBATCH -N 2 --gres=ptmpdir:1
    • #SBATCH --gres=gpuexlc:1,mps:1
  • Mixing GPUs of different types is not possible

GPU cost on Alvis

Type VRAM System memory per GPU CPU cores per GPU Cost
T4 16GB 72 or 192 GB 4 0.35
A40 48GB 64 GB 16 1
V100 32GB 192 or 384 GB 8 1.31
A100 40GB 64 or 128 GB 16 1.84
A100fat 80GB 256 GB 16 2.2
  • Example: using 2xT4 GPUs for 10 hours costs 7 "GPU hours" (2 x 0.35 x 10).
  • The cost reflects the actual price of the hardware (normalised against an A40 node/GPU).

GPU peak performance (×10¹² op/s)

Data type A100 A40 V100 T4
FP64 9.7 | 19.5* 0.58 7.8 0.25
FP32 19.5 37.4 15.7 8.1
TF32 156** 74.8** N/A N/A
FP16 312** 149.7** 125 65
BF16 312** 149.7** N/A N/A
Int8 624** 299.3** 64 130
Int4 1248** 598.7** N/A 260

Querying visible devices

  • Control groups (an OS feature) is used automatically to limit your session to the GPU you request.
  • Most software tend to "just work".

Long running jobs

  • We only allow for maximum 7 days walltime.
  • Anything long running should use checkpointing of some sort to save partial results.
  • You will not be recompensed for aborted simulations from hardware or software errors.

Multi-node jobs

  • For multi node jobs your application will need to handle all the inter-node communication, typically done with MPI.
  • You may need to port your problem to a framework that supports distributed learning, e.g. Horovod
  • If you can run multiple separate jobs with fewer GPUs each this is preferable for system utilisation.
  • You will only be able to allocate full nodes when requesting more than one.

Example: Working with many small files

#!/usr/bin/env bash
#SBATCH -A NAISS2023-Y-X -p alvis
#SBATCH -t 1-00:00:00
#SBATCH --gpus-per-node=V100:1

unzip many_tiny_files_dataset.zip -d $TMPDIR/
apptainer exec --nv ~/tensorflow-2.1.0.sif trainer.py --training_input=$TMPDIR/
# or use available containers e.g.
# /apps/containers/TensorFlow/TensorFlow_v2.3.1-tf2-py3-GPU-Jupyter.sif
  • Prefer to write code that uses HDF5, netCDF, zip, tar directly. h5py is very easy to use.

Example: Running notebooks as batch jobs

#!/usr/bin/env bash
#SBATCH -A NAISS2024-Y-X -p alvis
#SBATCH -t 1-00:00:00
#SBATCH --gpus-per-node=A40:1

module purge
module load TensorFlow/2.15.1-foss-2023a-CUDA-12.1.1
module load IPython/8.5.0-GCCcore-11.3.0

ipython -c "%run my-notebook.ipynb"
  • No need to wait for job to start just to press run in the notebook.
  • No extra time spent idling before and after computations.

Example: Job arrays

#!/usr/bin/env bash
#SBATCH -A NAISS2023-Y-X -p alvis
#SBATCH -t 5:00:00
#SBATCH --gpus-per-node=T4:2
#SBATCH --array=0-9
#SBATCH --mail-user=zapp.brannigan@chalmers.se --mail-type=end

module load PyTorch/2.1.2-foss-2023a-CUDA-12.1.1 h5py/3.9.0-foss-2023a
python classification_problem.py dataset_$SLURM_ARRAY_TASK_ID.hdf5
  • More examples are available at Running job-arrays
  • Environment variables like $SLURM_ARRAY_TASK_ID can also be accessed from within all programming languages, e.g:
array_id = getenv('SLURM_ARRAY_TASK_ID'); % matlab

array_id = os.getenv('SLURM_ARRAY_TASK_ID') # python

Example: Multi-node

#!/usr/bin/env bash
#SBATCH -A NAISS2023-Y-X -p alvis
#SBATCH -t 1-00:00:00
#SBATCH --gpus-per-node=T4:8
## 2 tasks across 2 nodes
#SBATCH --nodes 2 --ntasks 2

module load Horovod/0.28.1-foss-2022a-CUDA-11.7.0-TensorFlow-2.11.0

mpirun python horovod_keras_tf2_example.py
  • Multi-node jobs start on the first node which should then launch the rest (with mpirun/srun).
  • Make sure you are using the resources you request!
  • If using a container, you need to load a matching MPI from the module system

Interactive use

  • Alvis is a batch queue system, you should expect a queue sometimes. Bulk of simulations should be in queued batch jobs.
  • Use jobinfo or check portal footer to find idle GPUs.
  • Login node allows for light interactive use; it has 4 T4 GPUs (alvis1), but they are all shared.
    • Use nvidia-smi to check current usage and select your GPU number with export CUDA_VISIBLE_DEVICES=X.`
  • Login node needs to be restarted occasionally; do not make your production runs rely on the login nodes uptime!
  • Several interactive apps that run on compute nodes are available through the portal.
  • If needed you can run interactively on compute nodes with srun, e.g.
    • srun -A NAISS2023-X-Y -p alvis --gpus-per-node=T4:1 --pty bash

Jupyter Notebooks

  • Jupyter Notebooks can run on login node or on compute nodes.
  • Preferred way to launch interactive notebooks is via the Alvis OnDemand portal's jupyter app.
  • You can run notebooks non-interactively (e.g. in jobscripts) with ipython -c "%run name-of-notebook-here.ipynb"

Portal

  • Open OnDemand portal https://alvis.c3se.chalmers.se
  • Can be used to launch notebooks, desktops etc. on nodes.
  • Can be used to view your disk and project usage.

Chatbot LLM

Monitoring and profiling

  • For interactive jobs, use queue monitoring tools to see what is available
  • When running jobs, use monitoring tools to check usage
  • To improve your jobs profilers can be a big help

Queue monitoring

  • Alvis Grafana page shows state of login node and queue.
  • Alvis OnDemand footer and desktop task bar summarises available GPUs
  • jobinfo shows you the queue and available GPUs
    • Common reasons for queue status
      • Priority: Waiting for other queued jobs with higher priority.
      • Resources: Waiting for sufficient resources to be free.
      • AssocGrpBillingRunMinutes: We limit how much you can have running at once (<= 100% of 30-day allocation * 0.5^x where x is the number of stars in projinfo).
  • sinfo -Rl command shows reason if nodes are down (typically for maintenance)
  • scontrol show reservation shows reservations (e.g. planned maintenance)

Job and queue monitoring

  • job_stats.py JOBID gives you an URL to a public Grafana page for your job usage.
  • You can ssh into nodes when jobs are running, and for example run nvidia-smi or htop.

Profiling

  • With the right tools you can easily dive into where your code bottlenecks are, we recommend:
  • Tools can be used interactively on compute nodes with Open OnDemand portals!

Tensorboard for profiling

  • We have a Tensorboard guide
    • Add a Tensorboard callback to generate logs to a job-specific directory (overlapping logs confuses Tensorboard!)
    • Connecting via Alvis OnDemand (preferable), SSH tunnel or remote desktop.
    • Tip: the SSH tunnel can also be used for running other services on nodes, like code-server.
  • Be aware of security, because Tensorboard offers none!

Things to keep in mind

  • Never run (big or long) jobs on the login node! otherwise, the misbehaving processes will be killed by the administrators
    • If this is done repeatedly, you will be logged out, and your account will temporarily be blocked
  • You can however use the login node for interactively:
    • Preparing your job and checking if everything's OK before submitting the job
    • Debugging a lightweight job and running tests
  • You are expected to keep an eye on how your job performs especially for new jobscripts/codes!
    • Command line tools available on the login node and on the allocated nodes can help you check CPU/GPU, memory and network usage
  • Jobs where some or all of the allocated GPU:s are unused or very poorly utilized may be automatically terminated. We apply more stringent criteria for more expensive GPU types.
    • We send warnings by email regarding poorly performing and automatically terminated jobs. Please check your spam folder if you are not seeing these emails.

Getting support

  • We provide support to our users, but not for any and all problems
    • We can help you with software installation issues, and recommend compiler flags etc. for optimal performance
    • We can install software system-wide if there are many users who need it - but probably not for one user (unless the installation is simple)
    • We don't support your application software or help debugging your code/model or prepare your input files.
    • Book a time to meet us under office hours for help with things that are hard to put into a support request email

Identifying the issue

  • If you run into trouble, first figure out what seems to go wrong. Use the following as a checklist:
    • make sure you simply aren't over disk quota with C3SE_quota
    • something wrong with your job script or input file?
    • is there a bug in the program?
    • any error messages? Look in your manuals, and use Google!
    • check the metrics with job_stats.py: Did you over-allocate memory until your program was killed?
    • Try to isolate the problem - does it go away if you run a smaller job? does it go away if you use your home directory instead of the local disk on the node?
    • Try to create a test case - the smallest and simplest possible case that reproduces the problem

Error reports

  • In order to help you, we need as much and as good information as possible:
    • What's the job-ID of the failing job?
    • What working directory and what job-script?
    • What software are you using?
    • What's happening - especially error messages?
    • Did this work before, or has it never worked?
    • Do you have a minimal example?
    • No need to attach files; just point us to a directory on the system.
  • Support cases must go through https://supr.naiss.se/support/

Further learning
